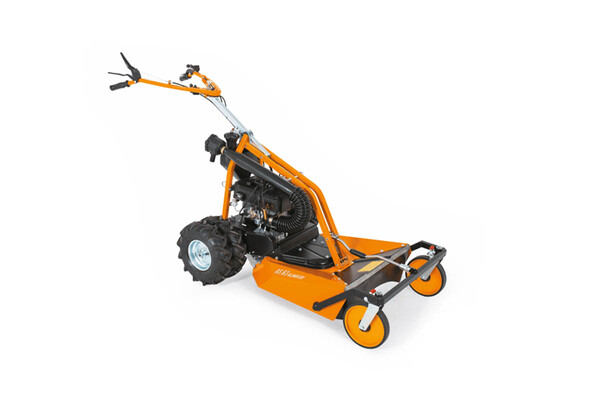

AS 63 2T ES Slasher Mower

AS 63 2T Operating Manual

AS 63 2T Brochure

Mulch where others hit their limits.

The AS 2-stroke engine maintains engine lubrication regardless of position, enabling mowing on inclines of 45 degrees and more without the risk of engine damage. In addition, the AS 2-stroke engine is factory-equipped with an EasyStart function; the CDI digital ignition system cuts the rpms required to start in half.

The 2-stroke engine’s high torque provides full power in high, wet grass while a third crankshaft bearing and friction discs on the wing blade protect the engine in the event of striking an obstacle. Large inflatable tyres with field studs offer ideal propulsion at speeds up to 4.0 km/h.

The drive-reduction transmission with a gear ratio of 1:13.44 allows the AS 63 2T ES to brake autonomously when moving downhill. The machine will not speed up when moving downhill, no matter how steep the incline. When in drive the AS 63 2T ES has a permanently locked limited slip differential which increases traction and safety, particularly on slopes. Work rates reaching 2,400 m² per hour are possible due to a high-performance 2-stroke engine with up to 6.7 hp, variable drive and a 61 cm cutting width. The AS 63 2T ES easily cuts grass up to 100 cm high.

Simple, convenient and safe operation

The AS 63 2T ES works with operating levers that activate the parking brake, the traction drive, the limited slip differential and the blade clutch. Absolute safety for slope mowing is achieved by an automatic parking brake and limited slip differential which remains permanently locked while the machine is in drive. When the drive lever is released, the parking brake automatically engages and the AS 63 2T ES stops, whether on a slope or level ground. For convenient operation the guide bar is equipped with a V-handlebar which can be adjusted laterally and for height without tools. “VibrationProtect” vibration damping reduces hand-arm vibration to a minimum.
